AML

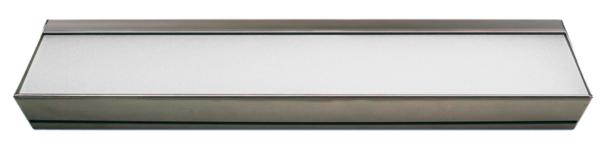

Asymmetric Recessed Luminaire

Natural anodised aluminuim wall-washer profile with 24° asymmetric reflector rendering an evenly diffused light.

Specifications
Ref
Dimensions
Lighting unit
Connector
Voltage
Power
IP Protection
Length
Data Sheet
AML-AC AMLAL AMLSAL AMLAL AMLSAL AMLAL AML-T5

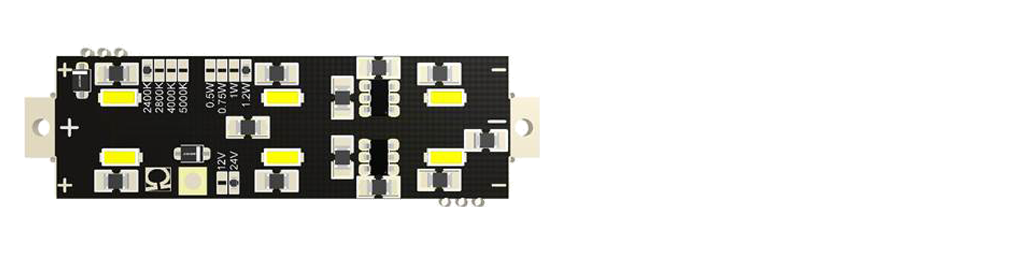

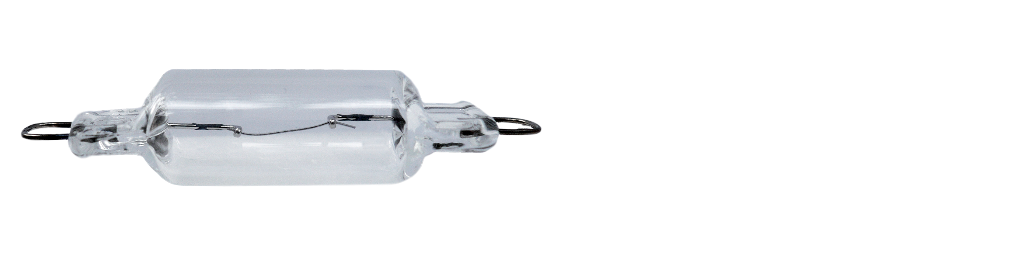

Xenon Aga-Led@ Type B Aga-Led@ Type B Aga-Led® Type A Aga-Led® Type A Flex Led Fluorescent T5 Tube
Rigid Loop Rigid Loop Festoon Rigid Loop Festoon - - Socket DT5
24V 24V 24V 24V 24V 24V 220-240V
51W/m to 170W/m 16.4W/m to 20.4W/m 16.4W/m to 20.4W/m 17W/m 17W/m 4.8W/m 14 - 21 - 28 - 35W
IP44 IP44 IP44 IP44 IP44 IP20 IP44
up to 2965mm up to 2965mm up to 2965mm up to 2965mm up to 2965mm up to 2965m 610 - 910 - 1210 - 1510mm
Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF
Finish & Certifications

Finish on request

Natural Anodised Aluminuim
Thermo-Enameling
Powder Coating RAL
Color Anodising
Polished Aluminuim

Certification

AML Asymmetric Recessed Luminaire full range is certified for

Downloads
