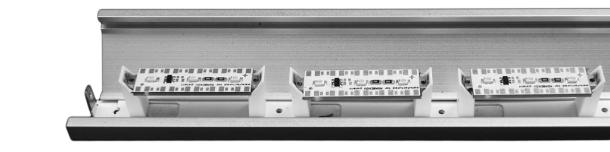

LU3
Universal 3 luminaire
Natural anodised aluminuim profile with perfect light distribution and a large choice of lighting source.
| Ref |

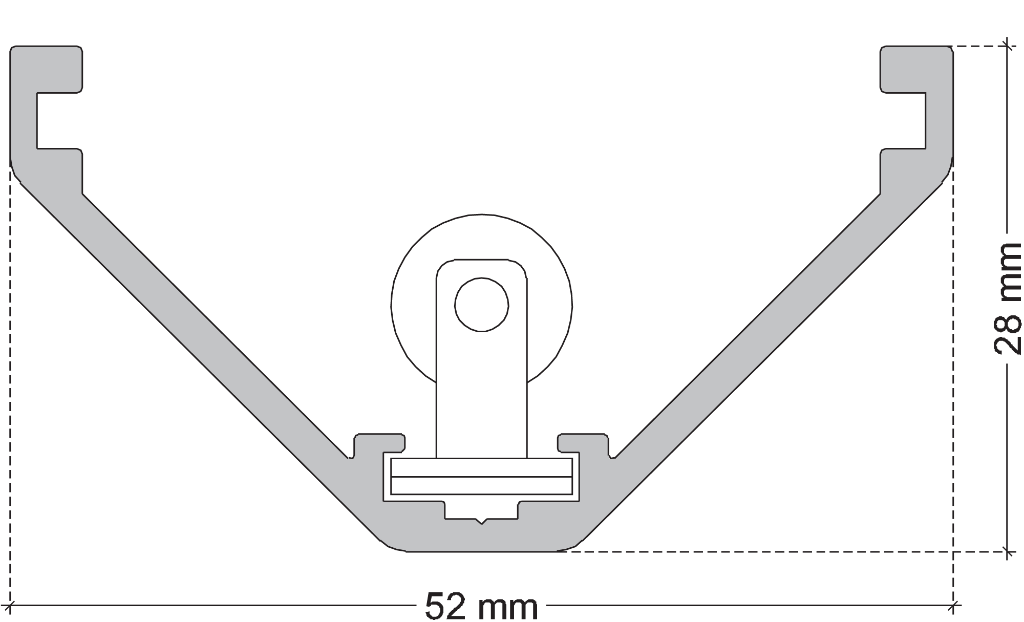

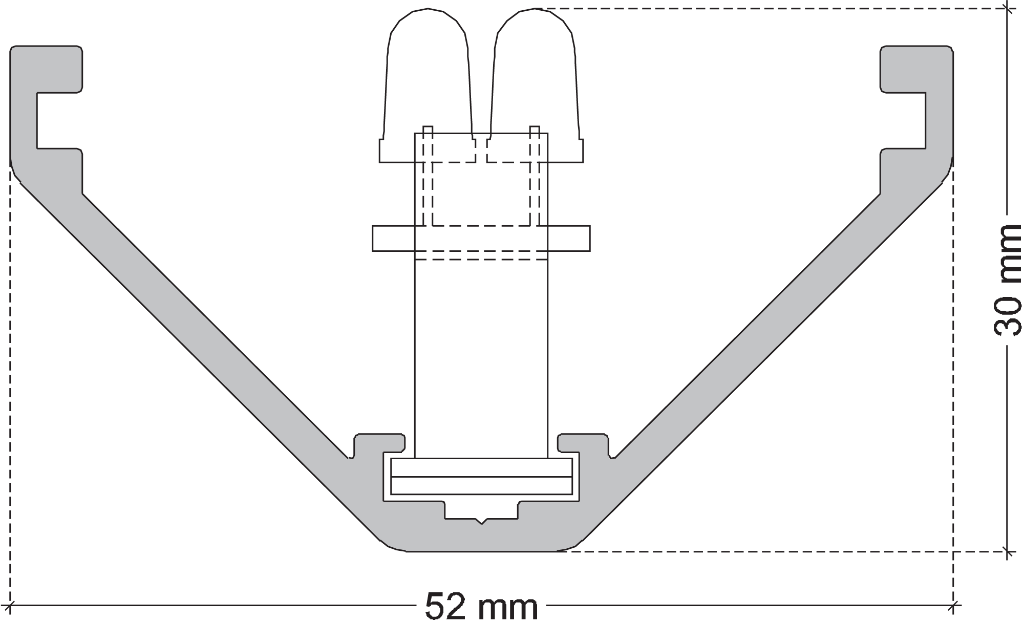

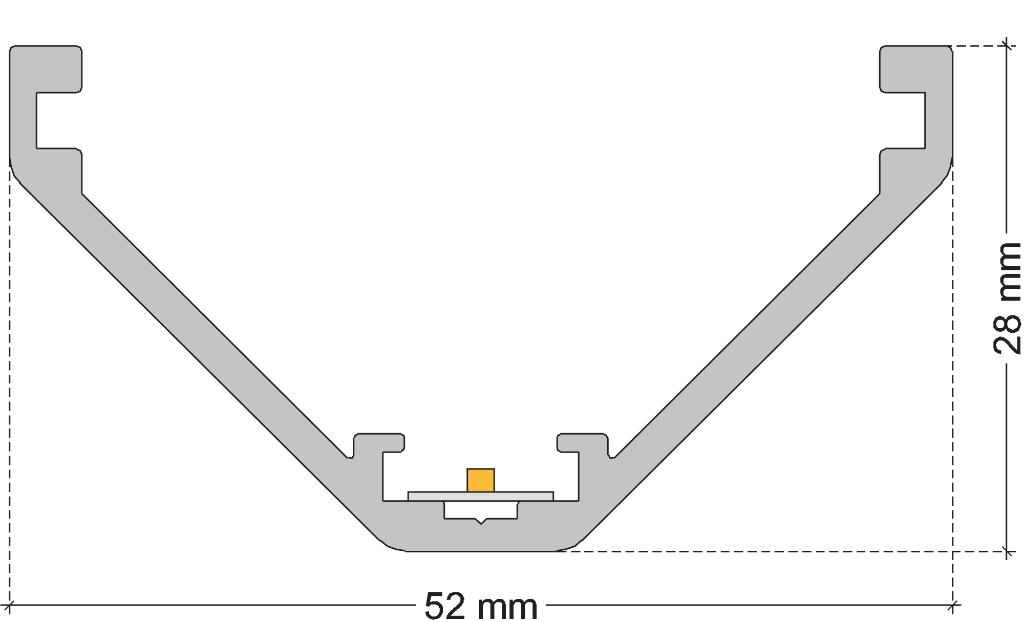

| Dimensions |
| Lighting unit |
| Connector |
| Voltage |
| Power |
| IP Protection |
| Length |
| Data Sheet |
| LU3X | LU3X-AC | LU3S | LU3AL | LU3SAL | LU3AL | LU3SAL | LU3AL |
 |
 |
 |
 |
 |
 |
 |
 |

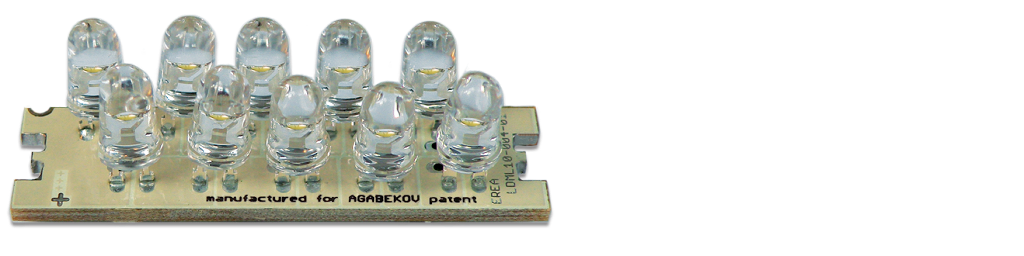

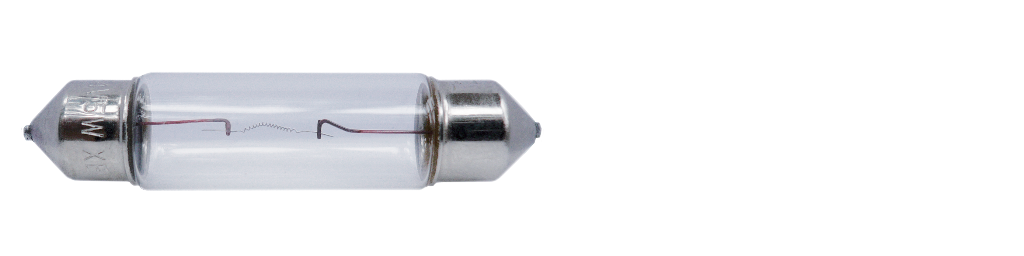

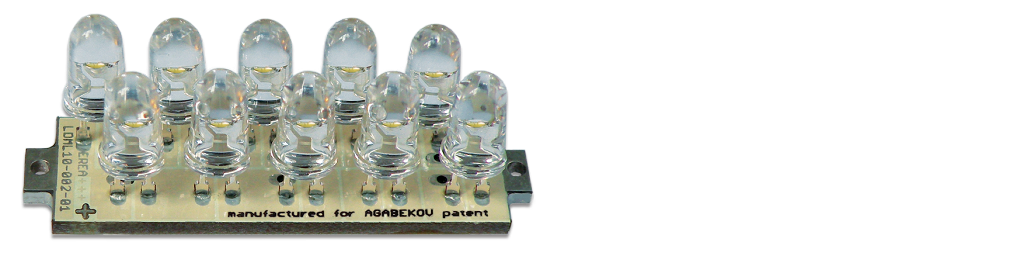

| Xenon | Xenon | Soffite | Aga-Led@ Type B | Aga-Led@ Type B | Aga-Led® Type A | Aga-Led® Type A | Flex Led |
| Rigid Loop | Rigid Loop | Festoon | Rigid Loop | Festoon | Rigid Loop | Festoon | - - |
 |
|
 |
 |
 |
 |
 |
 |
| 24V | 24V | 24V | 24V | 24V | 24V | 24V | 24V |
| 54W/m to 180W/m | 54W/m to 180W/m | 54W/m to 180W/m | 17.28W/m to 21.6W/m | 17.28W/m to 21.6W/m | 18 W/m | 18 W/m | 4.8W/m |
| IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| up to 3000mm | up to 3000mm | up to 3000mm | up to 3000mm | up to 3000mm | up to 3000mm | up to 3000mm | up to 3000mm |
| Download PDF | Download PDF | Download PDF | Download PDF | Download PDF | Download PDF | Download PDF | Download PDF |
Finish on request
Certification
LU3 Universal 3 luminaire full range is certified for
