LF

Flex linear Luminaire

Natural anodised aluminuim profile designed for horizontal and vertical installations with a large choice of lighitng source.

Specifications
Ref
Dimensions
Lighting unit
Connector
Voltage
Power
IP Protection
Length
Data Sheet
LFX LFX-AC LLS LFAL LFALC LFSAL LFAL LFSAL LFAL

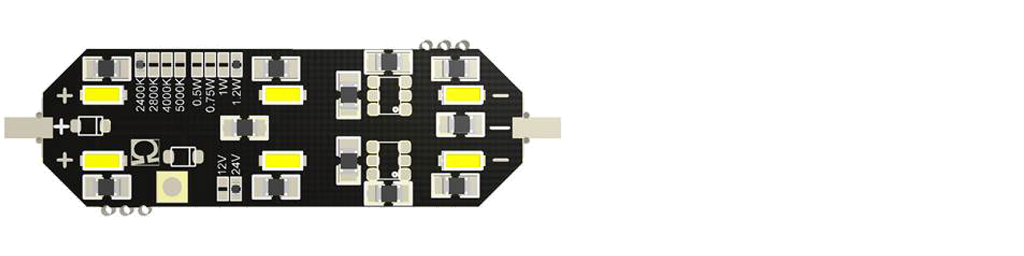

Xenon Xenon Soffite Aga-Led@ Type B Aga-Led@ Type B Aga-Led@ Type B Aga-Led® Type A Aga-Led® Type A Flex Led
Rigid Loop Rigid Loop Festoon Rigid Loop 4 Positions Clip Festoon Rigid Loop Festoon - -
24V 24V 24V 24V 24V 24V 24V 24V 24V
54W/m to 180W/m 54W/m to 180W/m 51W/m to 170W/m 17.28W/m to 21.60W/m 17.28W/m to 21.60W/m 16.32W/m to 21.60W/m 18W/m 18W/m 4.8W/m
IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20
up to 3000mm up to 3000mm up to 3000mm up to 3000mm up to 3000mm up to 3000mm up to 3000mm up to 3000mm up to 3000mm
Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF
Finish & Certifications

Finish on request

Natural Anodised Aluminuim
Thermo-Enameling
Powder Coating RAL
Color Anodising
Polished Aluminuim

Certification

LF Flex linear Luminaire full range is certified for
