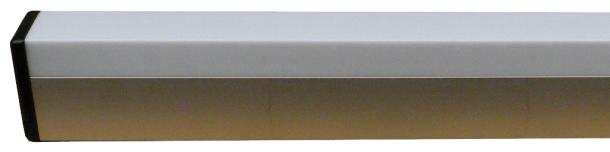

LU6

Universal 6 luminaire

Natural anodised aluminuim profile designed for diffused lighting as a wall bracket specially for bathroom, long corridor, stair case.... Luminaire on measure till 3m.

Specifications
Ref
Dimensions
Lighting unit
Connector
Voltage
Power
IP Protection
Length
Data Sheet
LU6X-AC LU6AL LU6SAL LU6AL LU6SAL LU6AL
Xenon Aga-Led@ Type B Aga-Led@ Type B Aga-Led® Type A Aga-Led® Type A Flex Led
Rigid Loop Rigid Loop Festoon Rigid Loop Festoon - -
24V 24V 24V 24V 24V 24V
54W/m to 180W/m 16.32W/m to 20.4W/m 16.32W/m to 20.4W/m 17 W/m 18 W/m 4.8W/m
IP20 IP20 IP20 IP20 IP20 IP20
up to 2970mm up to 2970mm up to 2970mm up to 2970mm up to 2970mm up to 2970mm
Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF
Finish & Certifications

Finish on request

Natural Anodised Aluminuim
Thermo-Enameling
Powder Coating RAL
Color Anodising
Polished Aluminuim

Certification

LU6 Universal 6 luminaire full range is certified for
