LU4

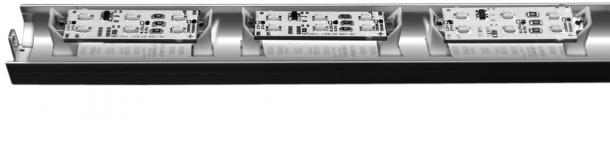

Universal 4 luminaire

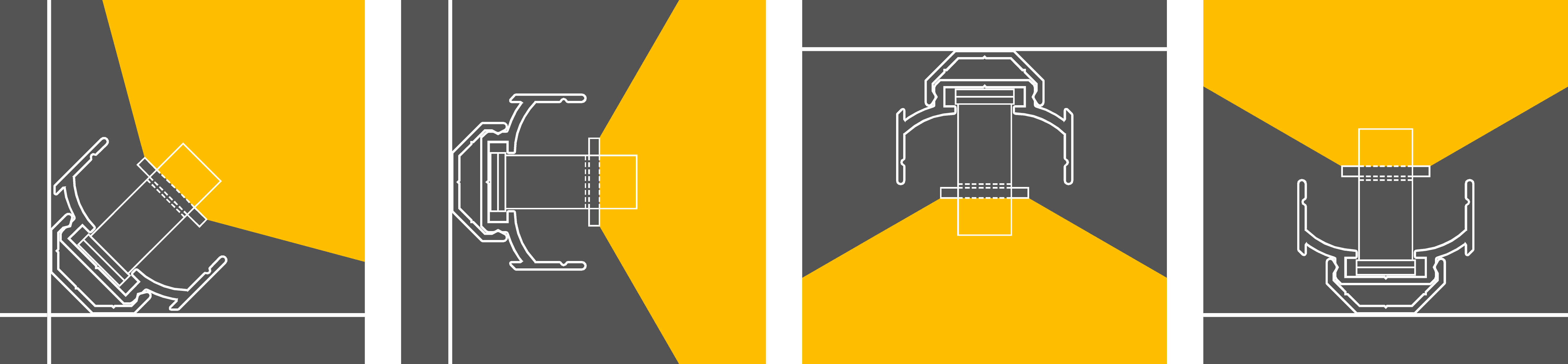

Natural anodised aluminuim profile designed for flat or any 90° angle.
Easy installation thanks to the system of clips FCU.

Specifications
Ref
Dimensions
Lighting unit
Connector
Voltage
Power
IP Protection
Length
Data Sheet
LU4X LU4X-AC LU4S LU4AL LU4SAL LU4AL LU4SAL LU4AL
Xenon Xenon Soffite Aga-Led@ Type B Aga-Led@ Type B Aga-Led® Type A Aga-Led® Type A Flex Led
Rigid Loop Rigid Loop Festoon Rigid Loop Festoon Rigid Loop Festoon - -
24V 24V 24V 24V 24V 24V 24V 24
54W/m to 180W/m 54W/m to 180W/m 54W/m to 180W/m 17.28W/m to 21.60W/m 17.28W/m to 21.60W/m 18 W/m 18 W/m 4.8W/m
IP20 IP20 IP20 IP20 IP20 IP20 IP20 IP20
up to 3000mm up to 3000mm up to 3000mm up to 3000mm up to 3000mm up to 3000mm up to 3000mm up to 3000mm
Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF Download PDF
Finish & Certifications

Finish on request

Natural Anodised Aluminuim
Thermo-Enameling
Powder Coating RAL
Color Anodising
Polished Aluminuim

Certification

LU4 Universal 4 luminaire full range is certified for

References

Discover some projetcs with this product
